Soybean Oil Refining Machine

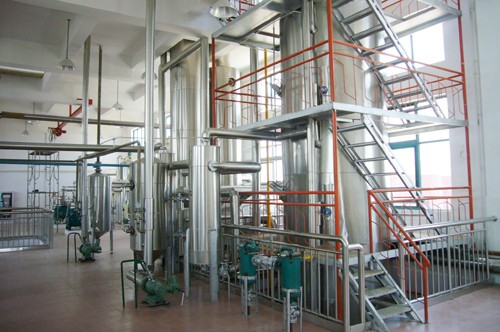

Soybean Oil Refining Machine


Type: crude soybean oil refining

Capacity: 30-1500T/D

Processing Material: crude soybean oil

Major equipment: degumming tank, nentralizing tank, centrifuge, heat conducting oil boiler, decolorization tower, deodorization tower, vacuum pump, air compressor, air press, steam generator, filter

Application: high efficiency oil refining from soybean oil, cottonseed oil, rapeseed oil, camellia seed oil, corn germ oil, rice bran oil, sunflower seed oil etc.

Huatai food&oil machinery adopts the most advanced CE and ISO9001 approval continuous soybean oil refining process line to get high purity and high oil yield refined soybean oil. Available with both physical and chemical refinery technology, we are able to provide customers the most affordable soybean oil refining machines including design, manufacturing, installation with guaranteed quality and reliable service. General introduction of crude soybean oil refining technology:

● Advanced techniques applied soybean oil refining production line with high efficiency and low residual oil. Huatai is focusing on designing physical and chemical edible oil refining process through de-mixed, degumming, dehydration, deacidification, decoloration, dewax and deodorization, oil pumps, filter system to obtain high purity refined soybean oil.

1) Soybean oil refining section adopts p-acid degumming, alkali refining de-acid and water rinsing to complete primary soybean oil refining.

2) Decoloring section will remove off pigments, blenching oils and grease dehydrate in crude soybean oil, and deodorizing section will remove off the odor component in oil.

3) Dewaxing section will remove wax in crude soybean oil to obtain high quality oil refinery.

4) Heat conducting oil boiler supplies each device energy and its highest temperature can reach above 280°C.

5) Steam generator produces the required steam for deodorization and distillation.

6) Vacuum pump supply vacuum for dehydrate, de-color, de-odor with high vacuum degrees of 755mm Hg.

7) Air compressor dries the blenched clay and empties the leftover oil in the press filter.

● Professional designed soybean oil refining process line assures high soybean oil capacity. The application of auto welding machine, professional designed thermometer, pressure gauge, safety valve, and vacuum system ensure the most secured refining of crude soybean oil with low residual oil and low pollution. Process Flow of continuous crude soybean oil refining machine process line:
